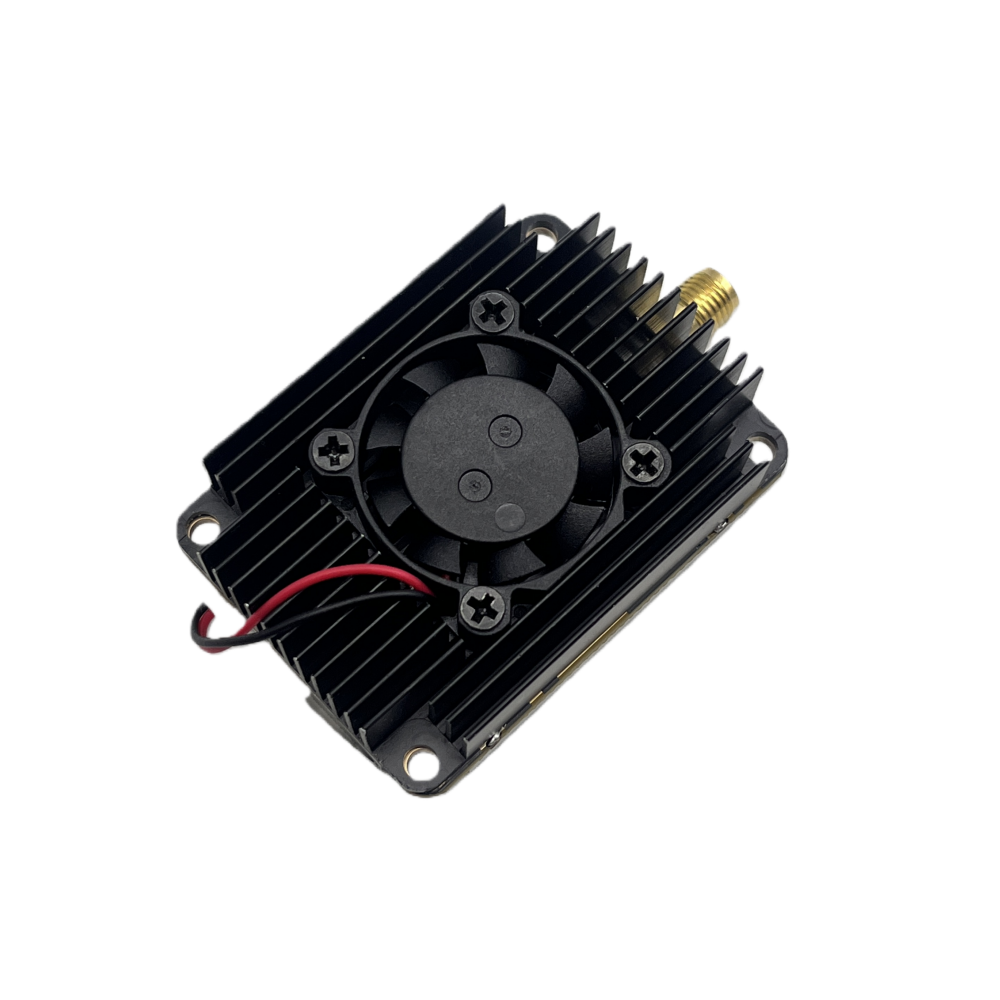

3.3G 6W VTX for FPV Long Range Racing Drone 2000mW/6000mW Adjustable

Brand Name : Kimpok

Model Number : ALV3306AC

Certification : CE Cerfication

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : L/C,Western Union,Paypal

Supply Ability : 3,000 pieces per month

Delivery Time : 3 working days

Packaging Details : International Standard Packing

Type : VTX for FPV transmission

Frequency : 3.3G

Channel : 64 Channel

Antenna Connector : SMA

Input Voltage : 7-26V

RF Power : 6 watt

Contact Now

3.3G 6W VTX for FPV Long Range Racing Drone 2000mW/6000mW Adjustable

  • Extremely High Power: 6000mW (6 Watts) output is exceptionally powerful for consumer-grade video transmission, typically used for extreme long-range or penetration applications.

  • Broad Frequency Range: 3.0 - 3.5 GHz is a common band for HD video transmitters, though specific legal allocations vary by country.

  • Multi-Channel Support: 64 Channels provide flexibility to find a clear frequency and avoid interference.

  • IRC Support: Intelligent Remote Control (IRC) allows for remote adjustment of settings (like channel and power) from the receiver side, a crucial feature for FPV drones and similar applications.

Product Specifications
Input Voltage 7-26V
Extra Features IRC 6000mW
Power Supply 5V camera @ under 500mA max.
Output Power 2000mW/6000mW
Microphone Not supported
Antenna Connector SMA
Cable Connector JST, 6Pin
Dimensions 50×36×16mm, 30.5×30.5mm (hole)
Weight 40.4g
Kit Contents 1x VTX, 1x cable, 1x antenna
Key Features
  • Support IRC data transmission
  • 2000/6000mW power switchable output
  • Built-in cooling fan for thermal management
  • OSD configuration using IRC protocol
  • Wide 7-26V input range with 5V camera output
Button Control Operation
Channel Select
Short press to cycle through 8 available channels.
Band Select
Press and hold for 2 seconds until LED flickers a letter, then short press to select from 8 bands (A-b-C-d-E-F-G-H).
Power Select
Press and hold for 4 seconds until LED flickers a number rapidly, then short press to choose between two power levels: 1 (2000mW) or 2 (6000mW).
P Mode
Press and hold for 5 seconds until LED displays "P" for 0dBm output. Hold for 5 seconds again to exit P mode.
Protection Features
Slow Power On
3-second delay before power amplifier activation prevents damage from maximum instantaneous power surges.
Pit Mode
Full IRC data accessibility with dedicated Pit Mode support for safe operation.
Frequency Channels (3060-3500MHz)
Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 3360 3380 3400 3420 3440 3460 3480 3500
b 3200 3220 3240 3260 3280 3300 3320 3340
C 3330 3350 3370 3390 3410 3430 3450 3470
d 3170 3190 3210 3230 3250 3270 3290 3310
E 3320 3345 3370 3395 3420 3445 3470 3495
F 3310 3330 3355 3380 3405 3430 3455 3480
G 3220 3240 3260 3280 3300 3320 3340 3360
H 3060 3080 3100 3120 3140 3160 3180 3200
